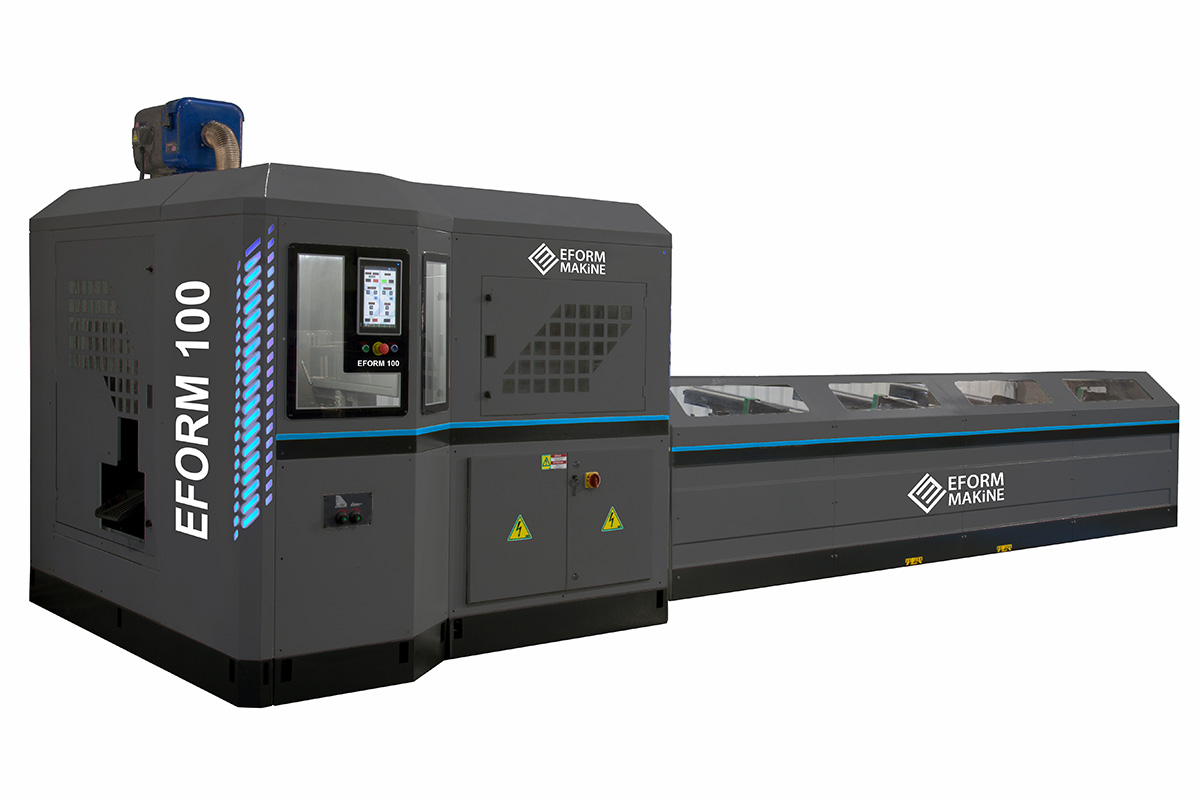

The EFORM 100 circular saw is High Speed Automatic Carbide Circular Sawing machine, designed for very fast cutting of solid bars at 90°.
Standart Features
- Heavy duty gear transmission designed for high speed carbide blade sawing
- Patented disc braked transmission to eliminate gearbox ‘backlash’designed to minimize vibration for optimum cut quality and blade life
- Servo motor and ball screw feeder for precision accuracy and quick set up
- Horizontal cutting system to cut easily both round and square shapes of solid bars
- Roller linear guides; SCHNEEBERGER MONORAIL MR profiled guideways with rollers for heavy duty conditions
- 10” Beijer color type touch screen control panel
- High-performance CODESYS motion controller by Beijer
- Panasonic servo motors for cutting head and feeder
- Fully automatic 6 m inclined magazine feeder with easy adjustment of material size
- Oil mist spray for virtually dry cut and superb finish
- Automatic lubrication system for ball screws and linear guides
- Automatic trim cut separation chute
- Auto chip conveyor
Optional Features
- Mist Collector
- Remote control device
- Long cut-off pieces unloading table
- Bar stock reservoir and loader
- Chain belt magazine table for flat work-piece
Cutting Capacity
| CUTTING CAPASITY | ||
| Maximum Saw Blade Size Ø | 360 mm | |
| Head Swivel | 90° | 45° |
| Round (mm) | Min. 20 – Max 100 | – |
| Square (mm) | Min 20×20 Max.80X80 | – |
| Rectangle (mm) | Min 20×20 Max.80X80 | – |
| Min. Rest Part (mm) | 90 | |
Technical Specifications
| TECHNICAL SPECIFICATIONS | ||
| Main Voltage (V) | 400 | |
| Control Voltage (V) | 24 | |
| Installed Power (kW) | 17 | |
| Hydraulic Motor (kW) | 1,5 | |
| Main Saw Motor (kW) | 11 | |
| Air Pressure (Consumption) | 6 kg/cm2 (240 ℓ /min) | |
| Blade Speed (RPM) | 30-120 By inverter | |
| Head Swivel | 90° | |
| Saw Blade Size (mm) |
Diameter | 360 |
| Bore | 40 | |
| Pin Holes | 4xØ21 / Pivot Center Ø90 | |
| Machine Dimensions (LxWxH) mm | 2220 x 2300 x 1950 | |
| Magazine Dimensions (LxWxH) mm | 4870 x 2111 x 1150 | |
| Machine Weight (Kg) | 4800 | |
| Magazine Weight (Kg) | 1950 | |
